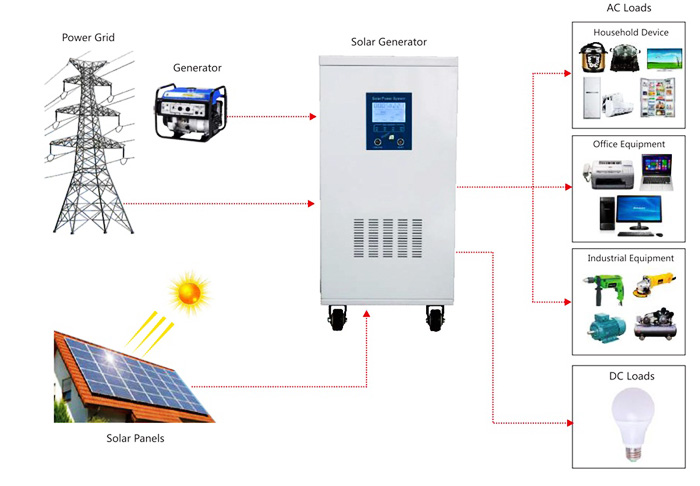

Specification

Model: TYN

35112

50112

35112

50112

10212

35124

50124

10224

Rated Power

350W

500W

350W

500W

1000W

350W

500W

1000W

Battery Voltage

12VDC

12VDC

24VDC

Inside Battery Capacity

100Ah*1

100Ah*1

200Ah*1

200Ah*1

200Ah*1

100Ah*2

100Ah*2

100Ah*2

Size(L*W*Hmm)

455*270*510

600*300*495

580*300*625

Package Size (L*W*Hmm)

530*345*635

660*360*620

655*375*750

N.W.(kg) Without Battery

18

19

23

27

30

29

31

36

G.W.(kg) Without Battery  Carton Packing

20

21

26

30

33

32

34

39

Specification

Model: TYN

20224

30248/96

50248/96

60248/96

Rated Power

2000W

3000W

5000W

6000W

Battery Voltage

24VDC

48/96VDC

Inside Battery Capacity

200Ah*2

200Ah*4/100Ah*8

Size(L*W*Hmm)

600*300*860

742*520*1080

Package Size (L*W*Hmm)

675*375*985

780*620*1400

N.W.(kg) Without Battery

46

83

95

97

G.W.(kg) Without Battery  Wooden Packing

57

101

113

115

Input

DC Input Voltage Range

10.5-15VDC（Single battery voltage）

AC Input Voltage Range

110VAC±25% / 115VAC±25% / 120VAC±25% / 220VAC±25% / 230VAC±25% / 240VAC±25%

AC Input Frequency Range

45Hz~65Hz

Output

Efficiency

≥85%

Output Voltage(Battery Mode)

110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%

Output Frequency(Battery Mode)

50/60Hz±1%

Output Wave(Battery Mode)

Pure Sine wave

AC Output Voltage Range

110VAC±10% / 115VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%

AC Output Frequency Range

Tracking Automatically

THD

≤3%

Working Mode

Battery First/AC First/Saving Energy Mode

AC Charging current

Max 15A

Inside Solar
Controller
（optional）

Charging Mode

PWM or MPPT

Charging Current

12V/24V/48V  System: 10A,20A,30A,40A,50A,60A;  96V System: 50A,100A

PV Input Voltage Range

12V System：15V-44V；24V System：30V-44V；48V System：60V-88V；96V System：120V-176V

Max PV Input Voltage
（At 25°C）

12V/24V System：50V；48V System：100V；96V System：200V

PV Array Maximum Power

12V System：140W,280W,420W,560W,700W,840W；24V System：280W,560W,840W,1120W,1400W,1680W；
48V System：560W,1120W,1680W,2240W,2800W,3360W；96V System：5.6KW,11.2KW

Protection

Low voltage alarm

11V±0.3V(Single battery)

Low voltage protection

10.5V±0.3V(Single battery)

Battery high voltage alarm

17V±0.5V(Single battery)

Battery high voltage  protection

15V~16V(Single battery)

Over load  protection

Overload exceeds 110%，automatic shutdown in 30 secs；Overload exceeds 120%，automatic shutdown in 2 secs

Short circuit  protection

Short circuit, auto shut down

Temperature  protection

High temperature, auto shut down

Parameter

Transfer Time

≤4ms

Display

LCD

Thermal method

Cooling fan in intelligent control

Communication

RS232（Optional）

Environment

Noise

≤55dB

Temperature

-10℃~40℃

Humidity

0%~95%（No condense）

Note：All specifications are subject to charge without prior notice
